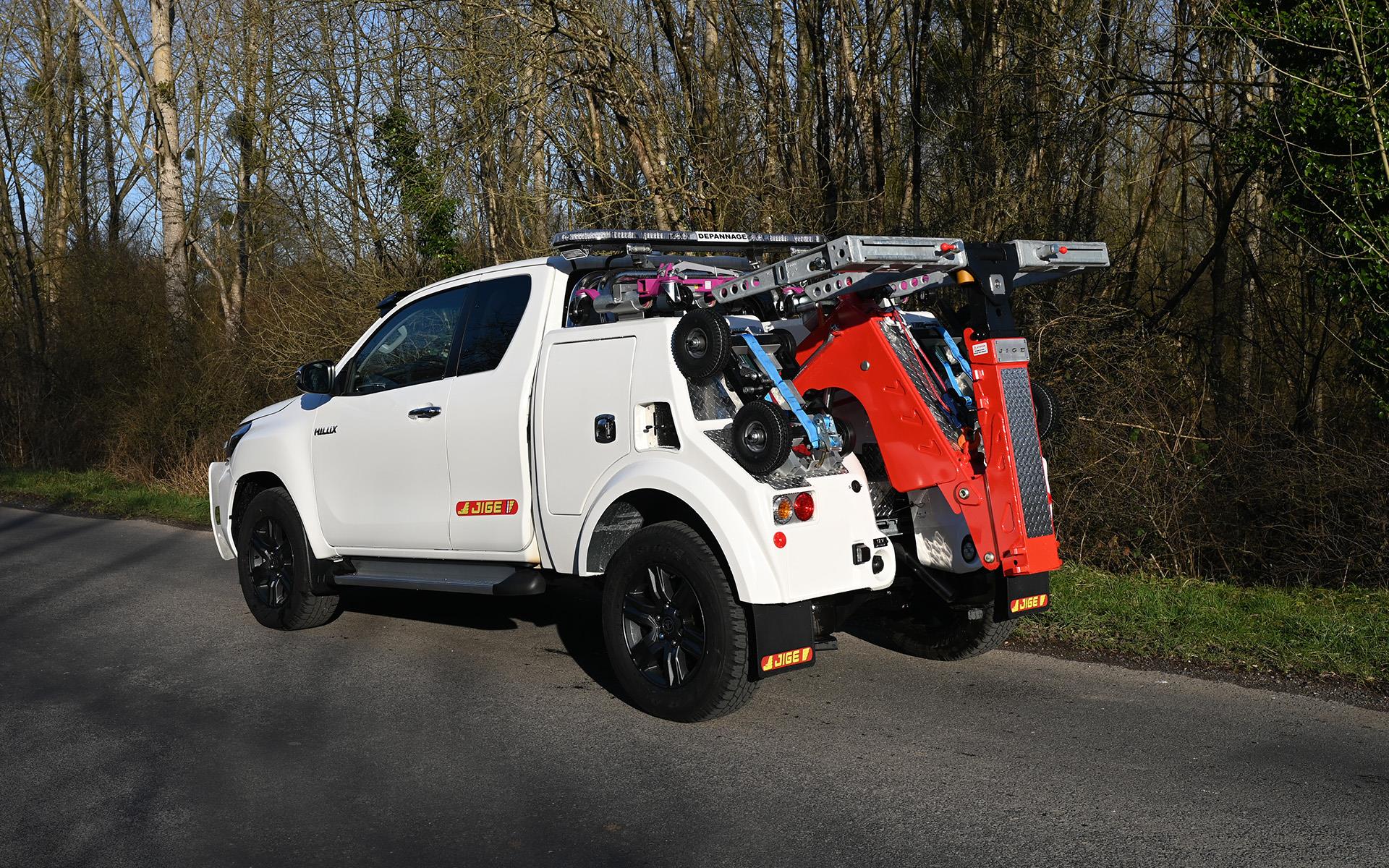

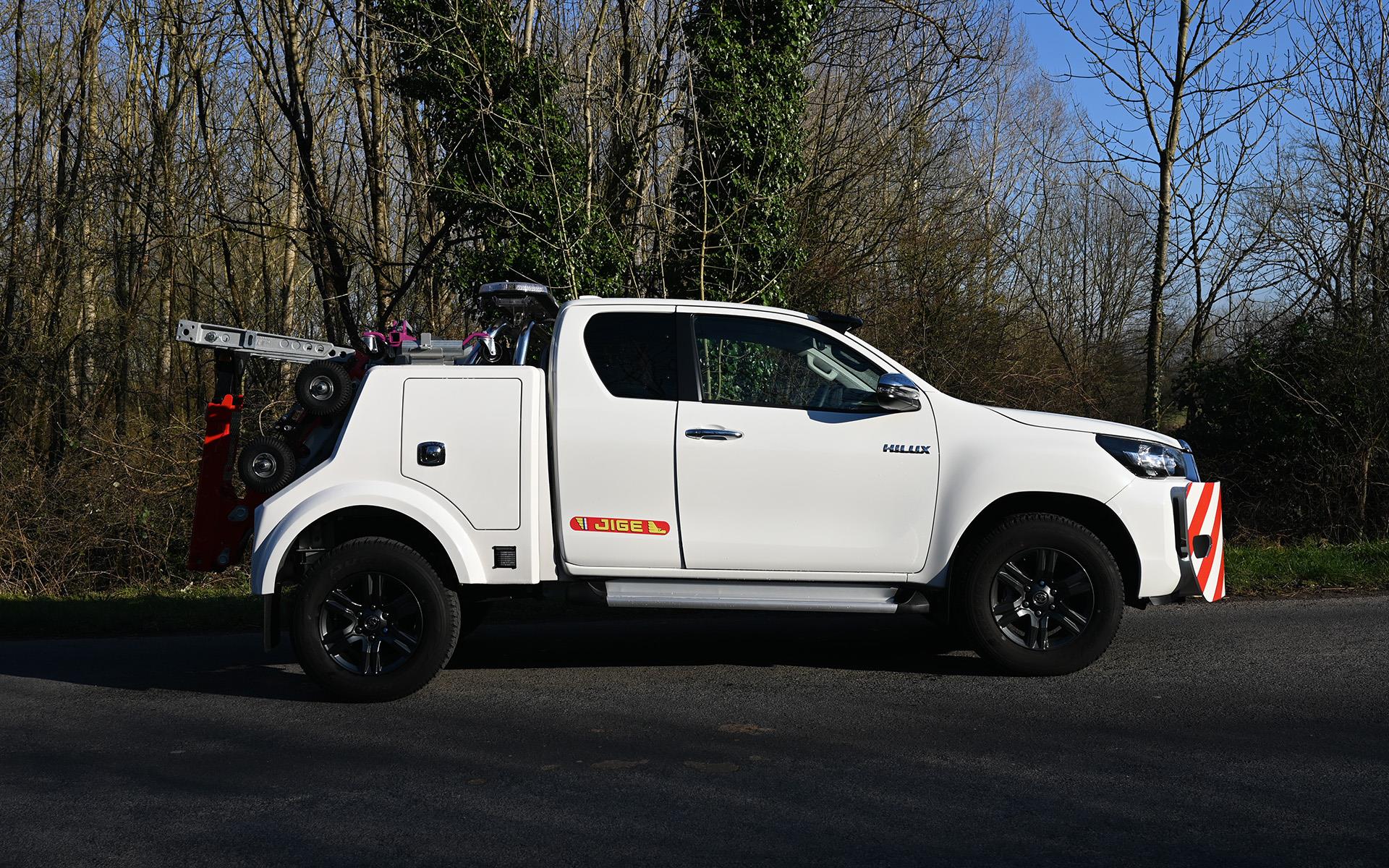

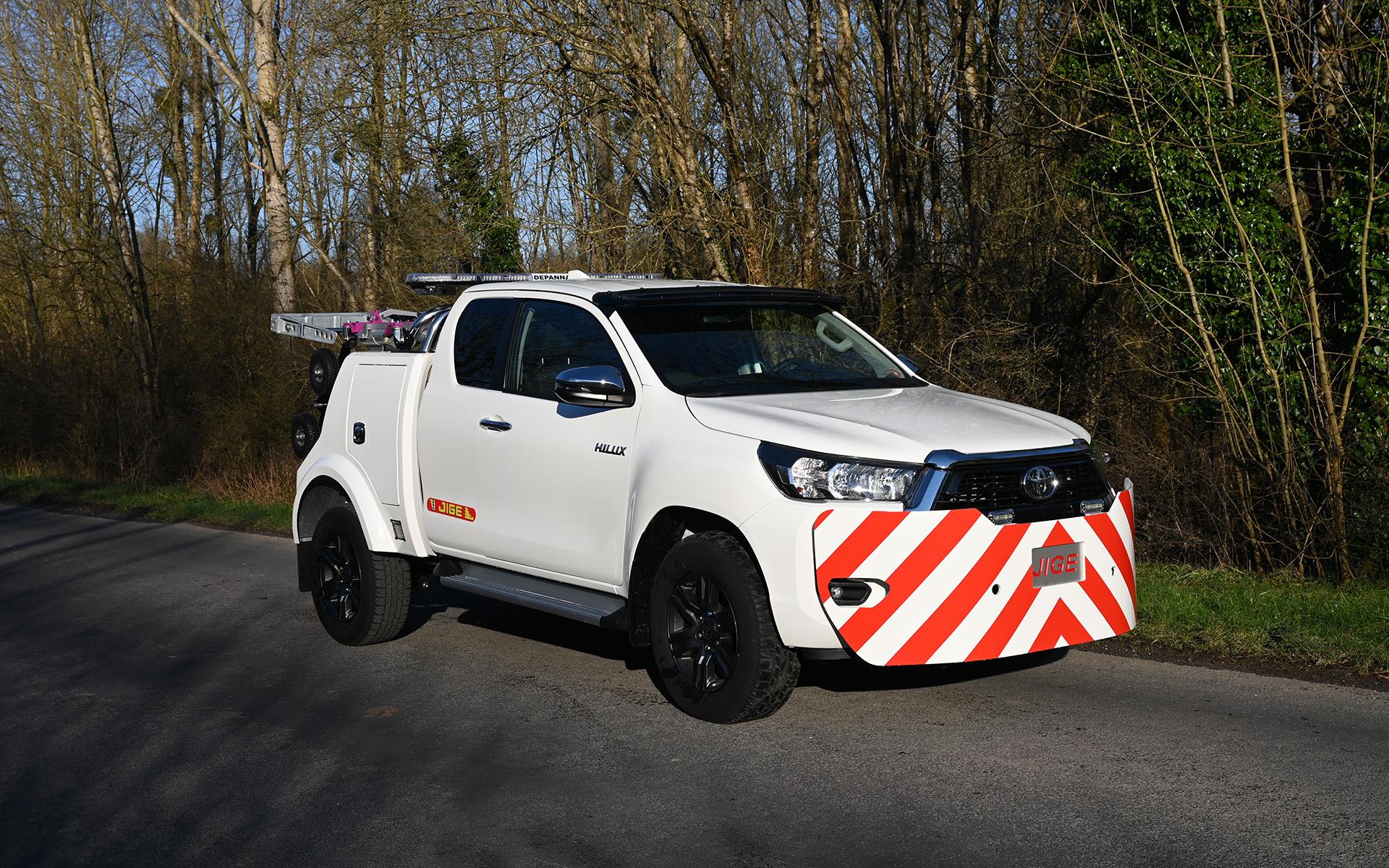

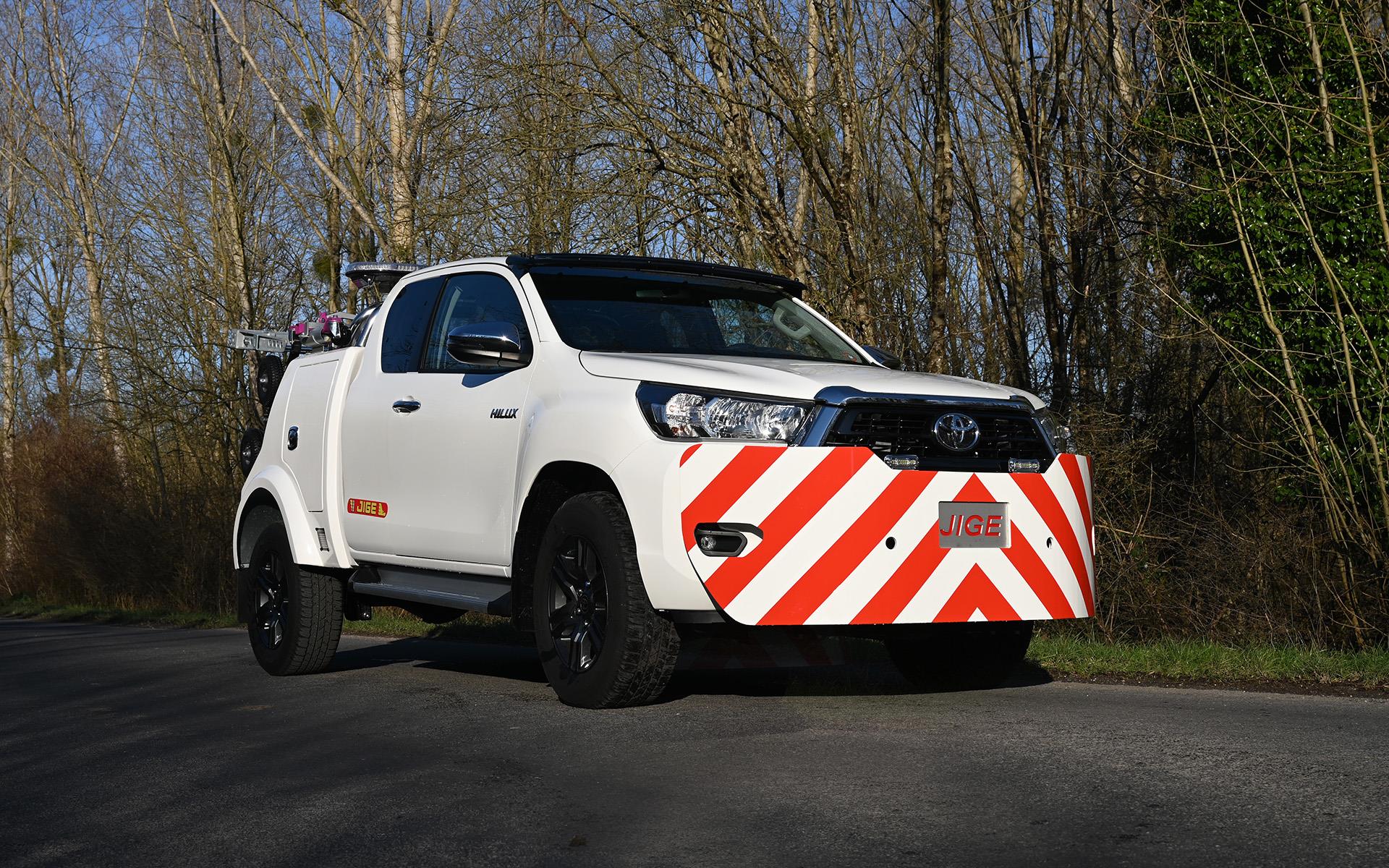

LIGHT CITY TOYOTA HILUX

TOYOTA HILUX LIGHT CITY:

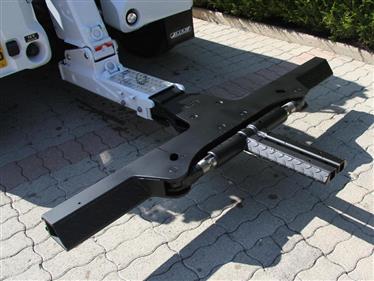

The equipment Light City, underlift arm 1.7t capacity, Helper frame adpated, hot galvanized for a better corrosion protection and mounted with optimized overhang dimensions. Hydraulic boom and telescope with trim correction.

Predisposition and chassis base required:

• Toyota HILUX 4x4 chassis.
• Chassis has to be supplied with trailer rear socket.

Components included into base :

• Integration of a ballast underneath the front bumper.
• Parabolic leaf reinforced suspension, shocks absorber, Panhard cross bar and air cushions.
• Electro hydraulic powerpack 12V installed on chassis
• High performance hydraulic system, hoses, counterbalance valves, quality valves block.
• Polyester bodies with rear fenders.
• Full underlift function radio remote controlled.
• Adjustable and openable light aluminium grid.
• Delivered with attaching grid straps set.
• Underlift base arm and telescope red RAL3020 painted.

To this Light City base around 50 options are available, all hydraulic, pneumatic and electrical connections are made; the equipement is checked and tested under load before delivery when all functionnality will be showed you.(made in France)
