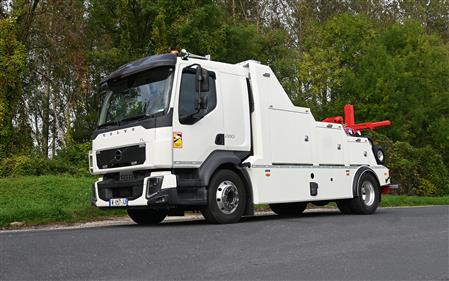

VULCAN 807
VULCAN 807 equipment consists of underlift arm 3.5t capacity, with helper frame adpated and mounted with optimized overhang dimensions. Hydraulic boom and telescope with trim correction.
Predisposition and chassis base required:
• Chassis getting a GVW from 12 to 16t.
• Chassis has to be supplied with trailer rear socket.
Components included into Vulcan 807 base:
• Hydraulic tank and piston pump.
• Performance hydraulic system, hoses,counterbalance valves, quality valves block.
• Auto Load Wheel Lift System.
• Delivered with attaching grid straps set.
• Dual 8,000 lbs Planetary Winches
• 180° Pivoting Crossbar
• Self Centering Crossbar
• Delivered with a set of slings for grid
• Counterweight matching chosen chassis
To this Vulcan 807 base some options are available, all hydraulic, pneumatic, and electrical connections are made. The equipement is checked and tested under load before delivery when all functionality will be explained to you.(made in France)
